Mooney Calibration Kits
Available for quotation
Mooney Calibration Kit
Need help selecting the right configuration? Speak to our team to get the best configuration for you.
Mooney Calibration Kits
Wallace offers two calibration kits designed to verify the performance and accuracy of the Mooney Viscometer as part of good laboratory practice. The kits are: Torque Calibration Kit and the Temperature Calibration Kit.
- Product Name
Mooney Viscometer Calibration Kits
- Overview
These kits help ensure reliable instrument operation and measurement consistency. The available calibration kits are:
- Torque Calibration Kit – used to verify the torque measurement accuracy of the viscometer.

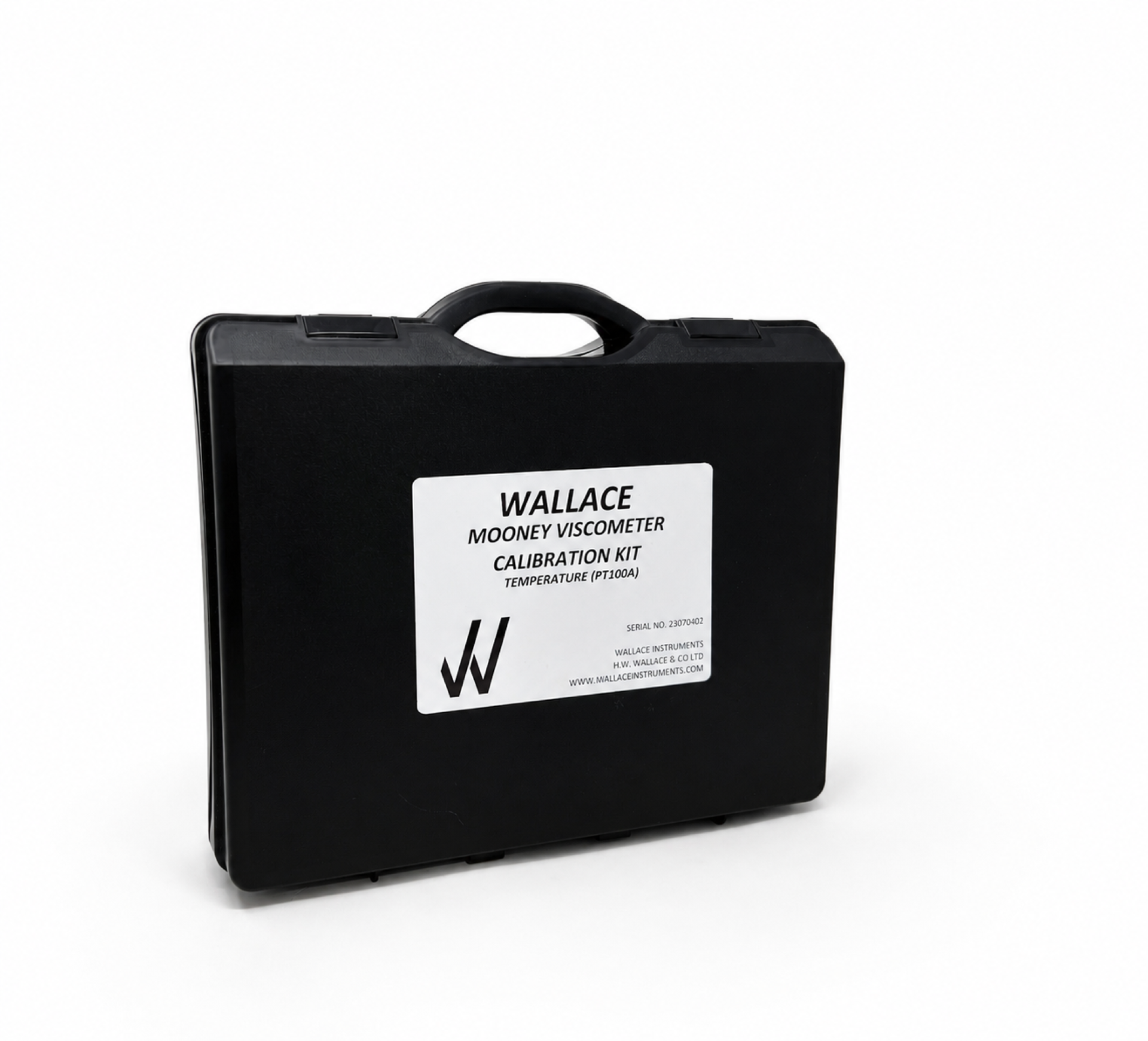

- Temperature Calibration Kit – used to confirm accurate temperature control and measurement within the instrument.
- Standards
ISO 289-1, ASTM D1646
- Application
Used to regularly verify both the torque and temperature operation of the Mooney Viscometer.
- Calibration Options
Manufacturer Calibration Certificate included as standard
- Typical Lead Time
4-6 weeks (to be confirmed at time of quoting)
- Attachments
-
-
©-Wallace-Instruments-Mooney-Viscometer-Mk-III-Calibration-Kits-Data-Sheet.pdf 284 KB
-
Specifications
| Calibration Kit | ||
| Type | Torque | Temperature |
| Part Number | WAV3/CAL KIT | W9-320 |
| Kit Box Dimensions (mm) | 180(h) x 600(w) x 500(d) | 55(h) x 235(w) x 200(d) |
| Kit Weight | 38kg | 740g |

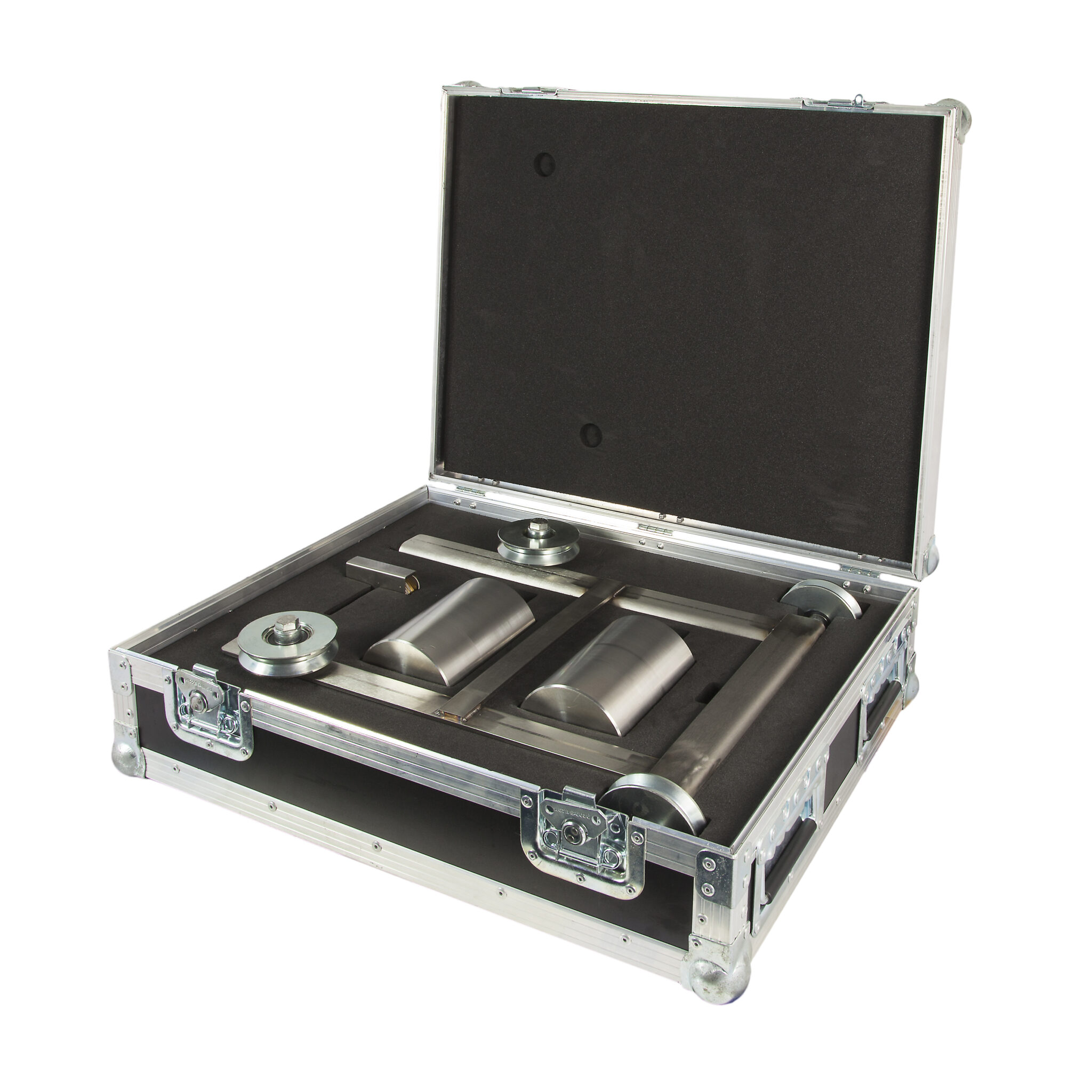

Included - Torque
| Included | |
| Calibration Weight | 2 off |
| Pulley Assembly | 1 off |
| Rotor Height Gauge | 1 off |
| Calibration Frame | 1 off |

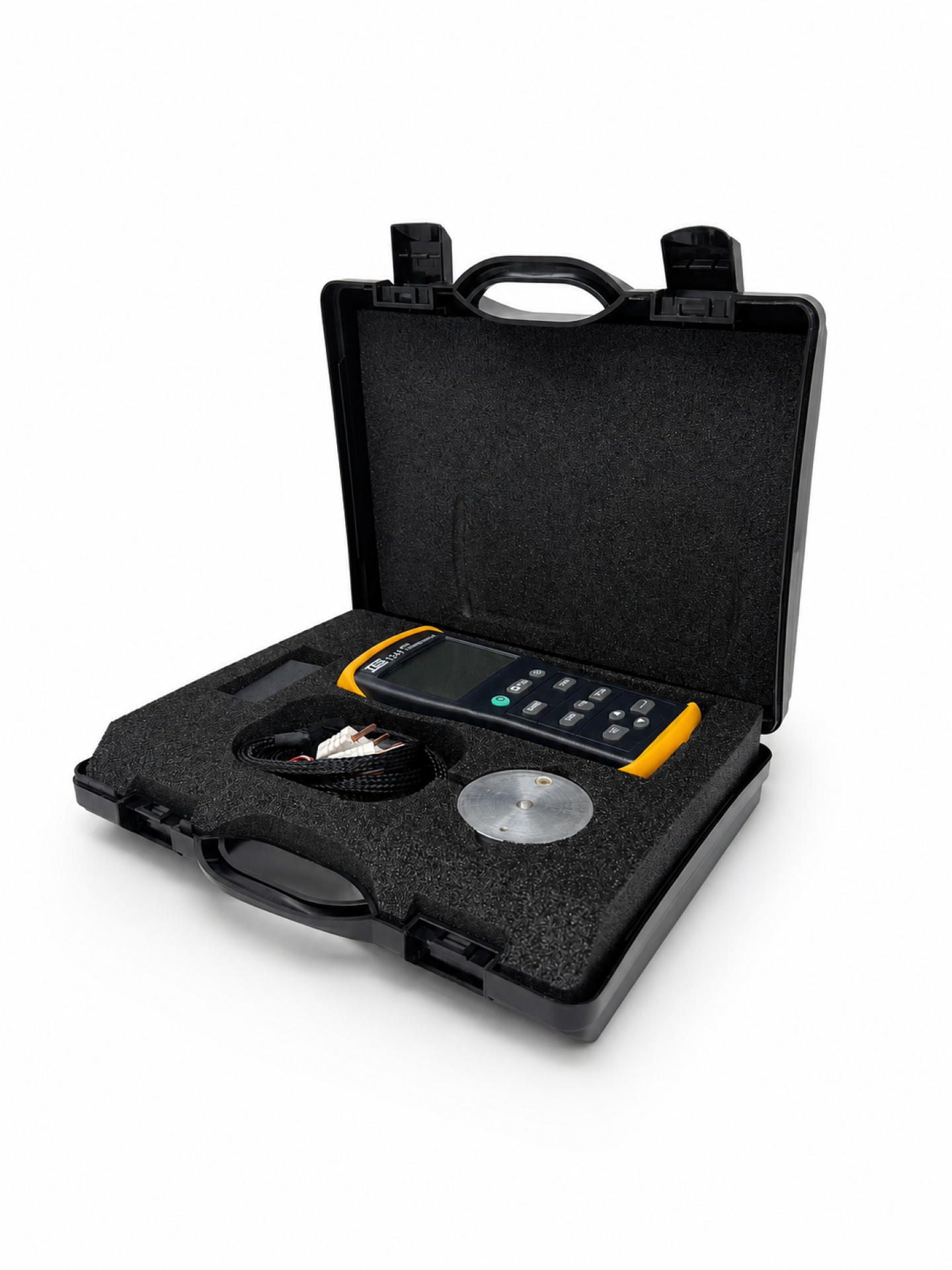

Included - Temperature
| Included | |
| Temperature Sensor Unit | 1 off |
| Dual Input Thermometer | 1 off |
Torque

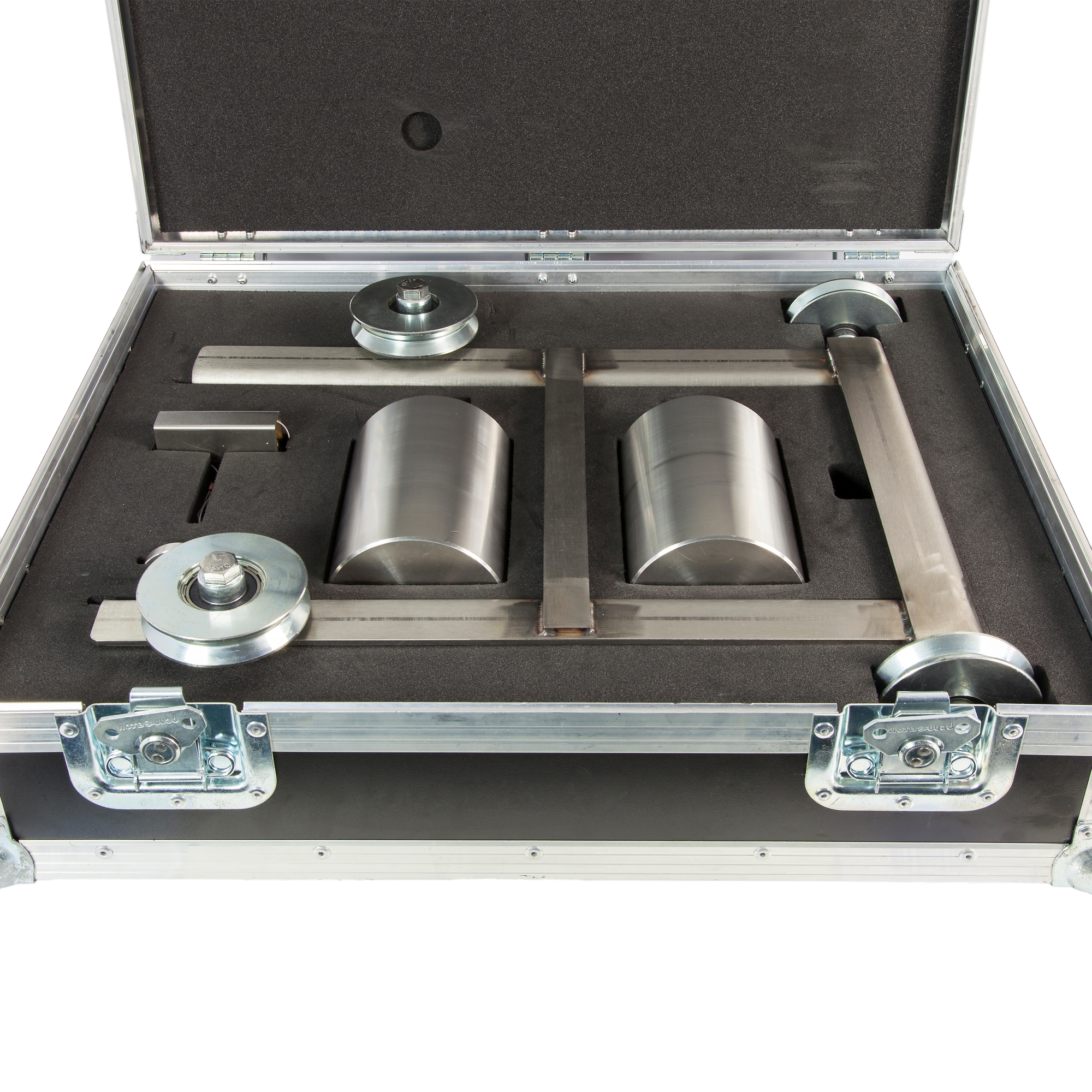

In normal operation the rotor is rotated within a sample, the sample has resistance and so the rotation of the rotor generates torque. This torque is measured and the result is expressed in Mooney units. To calibrate the instrument the sample resistance is simulated using weights. These are suspended on a frame using wire cables attached to a spool. The spool is located in place of the rotor. When the motor is started, the spool winds in the weights and they simulate 100 Mooney units.
Temperature
The temperature block is placed between the platens and the platens are closed. The temperature of the platens is displayed on the digital thermometer.
-
Included Calibration Weight 2 off Pulley Assembly 1 off Rotor Height Gauge 1 off Calibration Frame 1 off -
Included Temperature Sensor Unit 1 off Dual Input Thermometer 1 off -
?????
